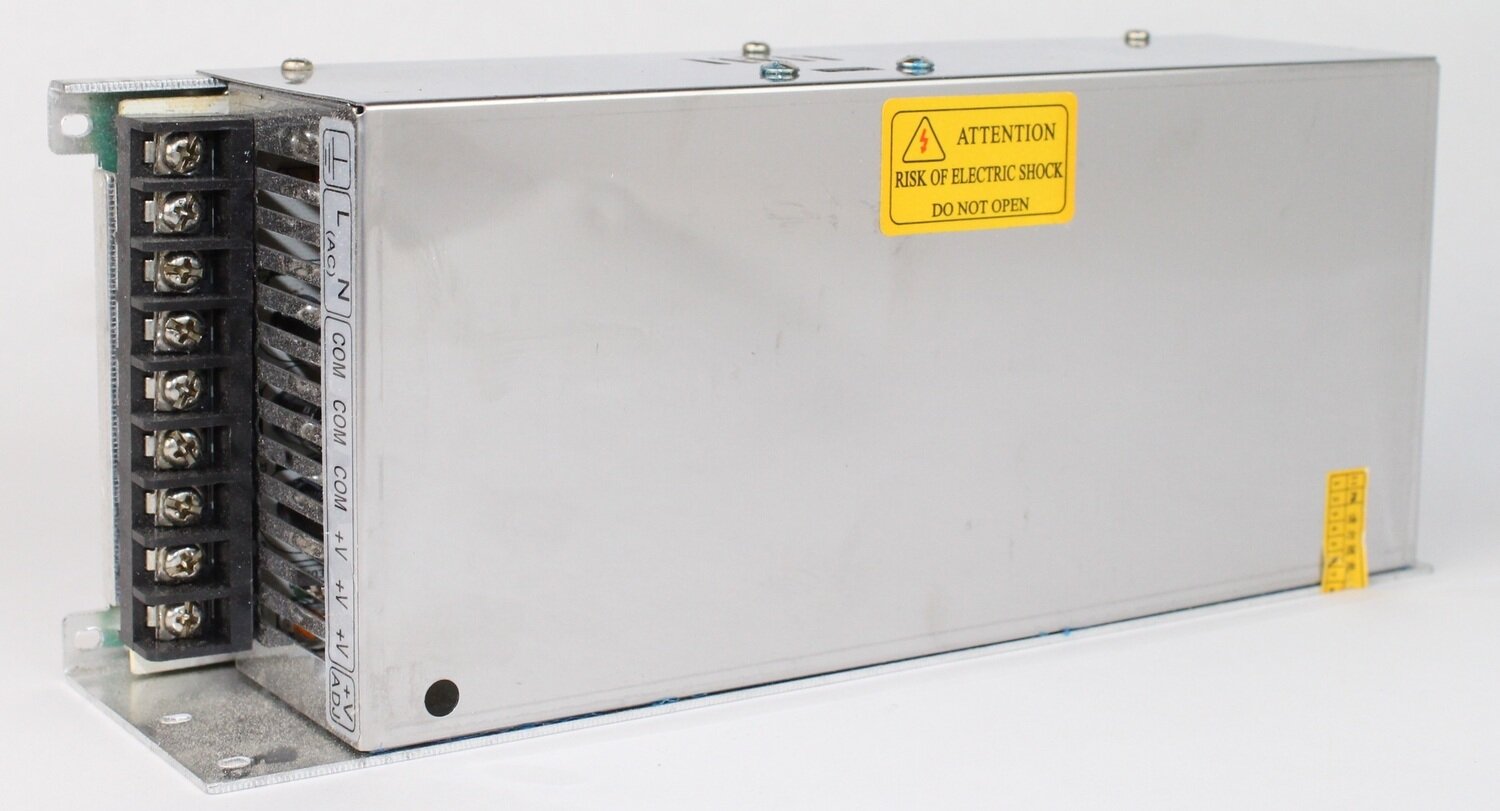

Stepper Motor Power Supply 400W 110/220VAC

The higher Voltage/Amperage power supply is used to give the stepper motors the power they need to move quickly and repeatably without loosing the commanded steps.

Power Supply: Part Number PS-110/220-36V-400W (MFG# CL-A1-400-36)

• AC Input of 110 or 220VAC. (selector switch)
• VDC Output of +36VDC @ 11 Amps ... 400 Watts
• Over Current protection, Over Voltage Protection, LED Output indicator.
• Box Dimensions: 10.2" length, 4.1" wide, 2.6" high (259 x 104 x 66 mm)
• Mounting Dimensions: 251 x 88 mm
