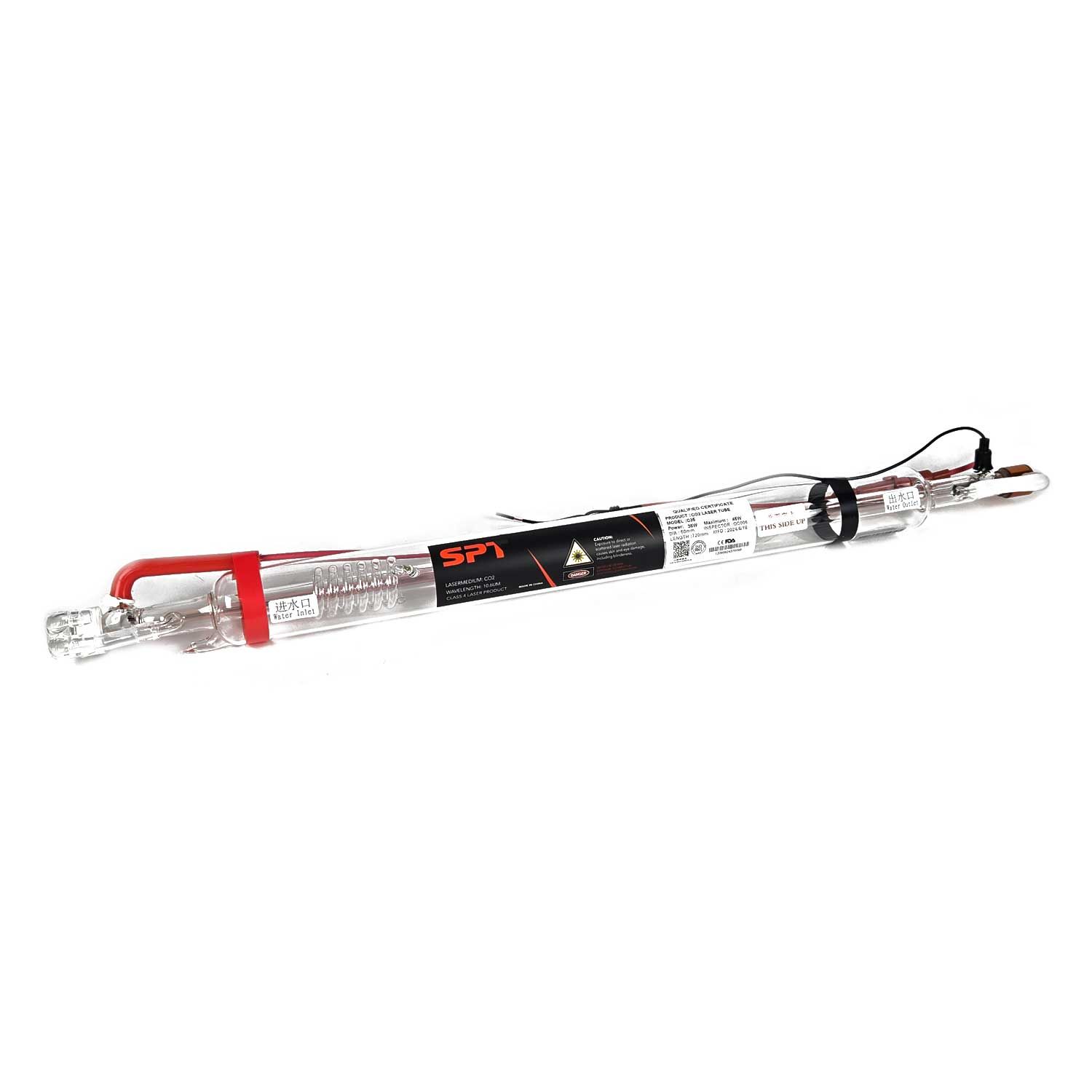

SPT C35 CO2 Laser Tube for Engraving and Cutting Machines

Product Overview

The SPT C35 CO2 laser tube is part of the esteemed C collection, known for its superior optical quality and robust cutting capabilities. Employing advanced vacuum coating technology, this model offers enhanced power and extended service life, making it a reliable choice for high-demand laser machinery manufacturers. Its design ensures stable laser output, catering to a variety of engraving and cutting applications.

Specifications

• Model: C35
• Rated Power: 35W
• Maximum Power: 45W
• Wavelength: 10.6μm
• Length: 720±5mm
• Diameter: 50±1mm
• Beam Divergence Angle: 3.1mrad
• Laser Mode: Multi-low-order mode
• Beam Quality: ≤1.1
• Spot Diameter: 4±1mm
• Stability: ≤±5%
• Excitation Mode: Electrical excitation
• Starting Current: 4mA
• Starting Voltage: 15kV
• Working Voltage: 10kV
• Recommended Current: 15mA
• Maximum Working Current: ≤20mA
• Modulated Frequency: ≤3kHz
• Cooling: Water-cooled, 15-25℃

Features

• Advanced Vacuum Coating Technology: Enhances power output and prolongs the life of the laser tube.
• High Optical Quality: Ensures sharp and precise cuts with less power consumption.
• Stable Output: Delivers consistent performance ideal for continuous operation in industrial settings.
• Water Cooling System: Maintains optimal temperatures, ensuring performance stability and safety during extended use.
• Quality Assurance: Each tube is rigorously tested before shipment to guarantee flawless operation upon delivery.

This SPT C35 laser tube is an indispensable component for professionals seeking efficiency and reliability in their laser cutting and engraving machines. Whether you're upgrading your current setup or building a new one, the C35 offers the performance and longevity required to handle complex tasks with ease.
