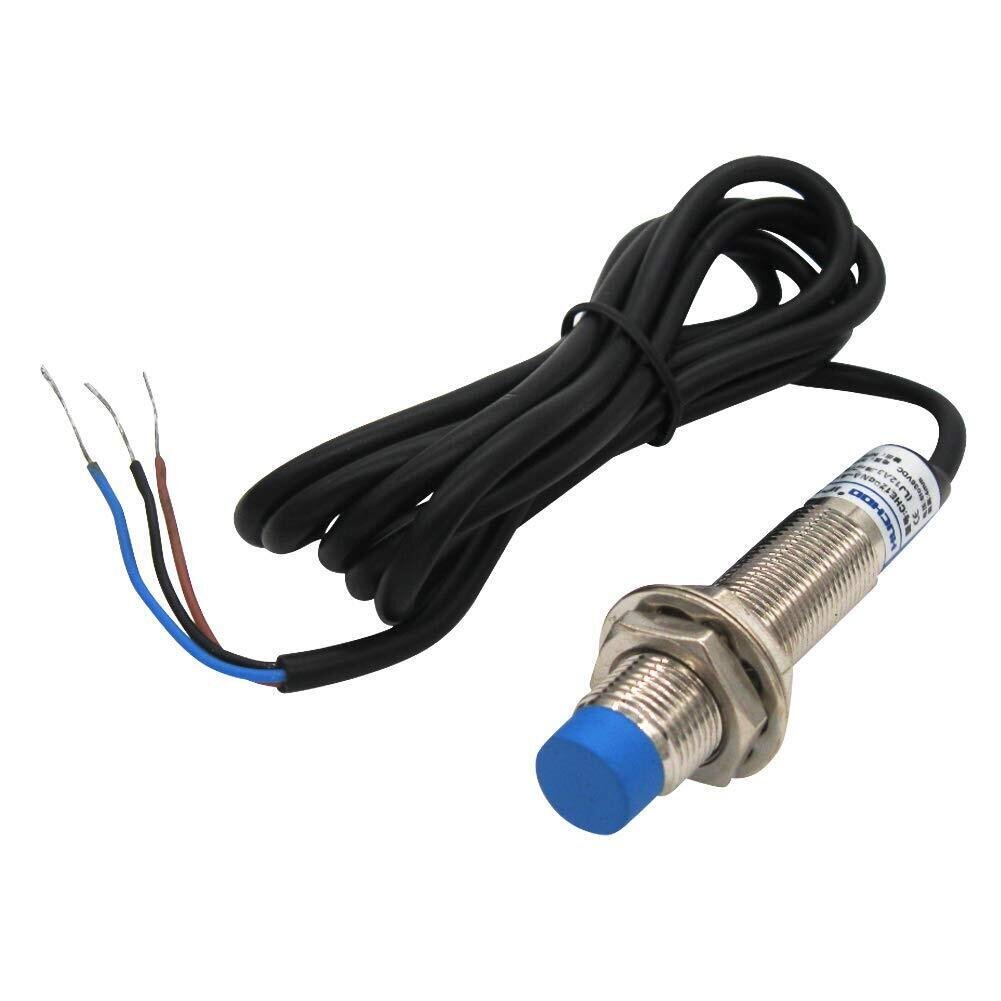

Proximity Sensor Switch (8mm Barrel - 2.0m cable)

Features:

This sensor is a widely used in automatic control industry for non-contact detecting metal at the front tip of the sensor barrel. The signal would then switch a transistor to pull current into the black wire (NPN sinking type control). This sensor is an inductive type proximity switch. This sensor is commonly used for the axis limit switch (home position) as well as the auto-focus position sensor.

Specifications:

Signal Polarity: NPN Detection

Wire Type: 3 Wire Type (Brown=Voltage, Blue=GND, Black=Signal)

Voltage: 10-24 VDC

Detection Distance: 2mm (varies per metal type)

Ouput Status: Normally Open

Output/Load current: 200mA

Detection objects: Conductor

Part number: PRX8-N-2-W200

Barrel Diameter: 8mm

Screw Length: 32mm

Tip: Exposed 4.5mm plastic sensor

Wire Length: 2 Meters

Wire color and plastic sensor tip color may vary

Quantity: 1 Pc
