A 3-pin replacement Chiller Interlock Cable for laser machines. This connector is commonly used for 1) Chiller Interlock Cable, 2) Attaching the 3-wire hybrid motors that connect from the rotary attachment device to the laser machine.

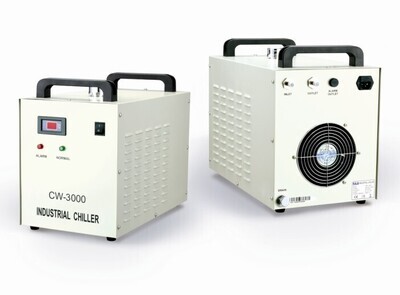

This is a set of (2) male connectors. The male connector (with pins) is mounted on the frame of the laser machine. The other male connector is on the back of the chiller enclosure.
Model Number: CIC-3 Other Names: Aviation Connector Straight Plug or GX16 connector Gender Type: Male Male Mounting Size: 12.5mm or 0.5in Install Type: Screw Thread Tighten Coupling: Threaded Coupling Rated Voltage: 250V (Maximum) Rated Current: 7A (Max per Pin) Contact Resistance: (Less than 5�) PIN of Number: 3 (PINs) Application Use for: Connector Cable Mounting Material: Hard Plastic, Alloy, Nickel-Plate, Silver Certifications: CSA UL Listed Ambient Temperature: -31deg F ~ 140deg F Shipping Weight: 2 OZ (per 1 Piece) Package Contain: 1 Cable
This cable connector is easy to use and commonly found in industrial machines such as: data acquisition systems, computer automation measurement and control systems, mechanical equipment, audio, video, communications, automotive.
