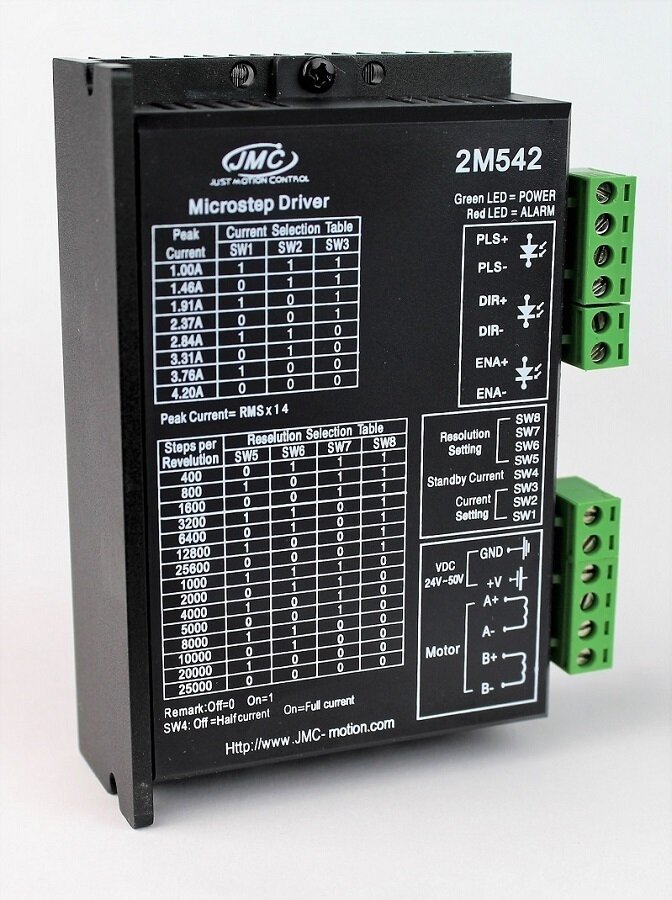

Bi-Polar Stepper Motor Driver (Part Number SMD-2M542-06)

Name: Bi-Polar Stepper Motor Driver (Part Number SMD-2M542-06)
SKU: 135
Price: 67.0 USD
Availability: InStock

$67.00

In stock

Product Details

Feature	Specification
Heatsink & connectors integrated	Yes
Input	20-50 VDC
Output	1.0 - 4.2A
Microstepping options	1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128; or 1/5, 1/10, 1/20, 1/25, 1/40, 1/50, 1/100, 1/125
DIP switch current options	1.20A, 1.75A, 2.29A, 2.84A, 3.41A, 3.97A, 4.51A, 5.04A
Low motor heating	Yes, 3-state current control technology implementation
Support	PULSE/DIRECTION & CW/CCW modes
Self-adjustment technology	Yes
Pulse input frequency	Up to 300 KHz
Input compatibility	TTL compatible, optically isolated
Idle-current reduction	Automatic
Selectable resolutions	15, up to 25,600 steps/rev
Motor compatibility	Suitable for 2-phase and 4-phase motors
Protection	Short-voltage, over-voltage, over-current, over-temperature
Dimensions	4.65 x 2.97 x 1.30 inches; 10 oz
Certifications	CE, ROHS certified
Connection type	4-wire Bi-Polar (A-, A+, B-, B+)
