Color separation: Uses color property to set function, speed, and laser power.
Fixed cabinet frame for rigidity.
Large Front/Rear doors for allowing items to extend out as they are engraved.
Motorized Up/Down Table.
Large motors for faster engraving speeds
*NEW* Reduction gear on X and Y axis to reduce "coin effect".
Materials can extend through the front and rear doors to allow for a larger work product.
Interior LED Work area light to help see products during laser processing.
Easy access for interchanging the rotary attachment
*NEW* Red-Dot pointer to help you see the expected laser beam position.
*NEW* AutoFocus touch sensor to easily set the right height for best engraving and cutting.
*NEW* Work surface has a vacuum table built in the design. This can pull warped sheets material down to become flat.
*NEW* Parts tray for removing small parts or scrap from under the workbed.
Fully enclosed laser case yields a class I (user friendly) laser product.
Price 40 Watt Sealed Glass CO2: $5,700 plus shipping and handling services.
Price 60 Watt Sealed Glass CO2: $6,200 plus shipping and handling services.
Please email or call for current pricing. Some discounts may apply.
The new 600 x 400 mm Laser engraving and cutting machine stands ready to improve your productivity and streamline your operations.
The main usage of this laser machine is for the small to medium business that needs a quality laser machine at a great price!
This high quality machine can be used for both engraving and cutting processes in the same project.
Cutting and Engraving materials: Bamboo, jade, marble, glass, crystal, plastic, garments, paperleather, rubber, ceramic, Hard Wood, MDF,
Plywood, Plexiglas, Plastic, Acrylic, and othe non metal materials.
Can also engrave onto metals with the use of an additive laser marking material like "Cermark".
Applications of Laser machines - Advertising, arts and crafts, leather, toys, garments, model, embroidery, clipping, packaging and paper industry,
Wood Working, engraving embroidery, crafts, RC airplanes, balsa models, kites, robotics kits, and clothing patterns.
Most-all features are now included as standard...everything you need to get started: Laser Cutter/Engraver, Water cooling pump and tank, Air Pump,
Exhaust blower, Lasercut 5.3 software and Software User Manual, Machine operation Manual, Software User Manual, Trouble Shooting Manual,
Communication cable, Power cable, Lenses and Laser tube (40 Watts standard), Machine operation Manual, USB Communication cable.
Rabbit Laser USA is known for excellent service and bringing forth laser products that are the best quality of all Chinese laser cutting machines.
This equipment can be applied to many kinds of materials, and has many advantages, such as smooth cutting edges, free from
polishing, no noise, no dust, faster processing speed, higher precision, less waste and more efficiency. It
is the best option for upgrading traditional equipment in various industries.
If custom ordering a machine, the color can also be specified.
Easy to Use LCD Control Panel with E-Stop and KeySwitch User Friendly LCD control panel allows the user to quickly change selected program and modify machine operational conditions.
You can Start, Stop, Pause, Reset, Datum, Test Fire, Outline engrave project area, Move the X or Y axis, LCD Viewing Display,
Z-Axis up/down, Control Interior light, Emergency Stop, Lockout the operations with the Key.
Dedicated MicroProcessor Controller for great performance The heart of the laser machine is the industry leading Leetro controller.
The Leetro motion controller is connected to the computer by USB connection.
The computer downloads the project to the laser motion controller and it does all the work, leaving the computer and operator free to work on the next project.
The dedicated Leetro controller has RAM onboard to store large projects without re-downloading from your computer.
Coolant Flow Check Sensor The laser machine can be equiped with a chiller or water pump and tank.
In either case, the coolant must keep the laser tube from over heating.
This check sensor ensures the laser will not be allowed to fire without proper coolant flow.
Air Pump The air pump is used for three basic reasons.
The primary reason is the push fumes away from the laser's focal lens.
This protects the lens from contaminants which could destroy the lens.
The second function of the air pump is to push air into the material's kerf as created by the laser beam.
Air that is applied to the kerf will remove debris/fumes and allow the laser light to penitrate deeper through the material.
The third reason is that the air will help to cool the material.
If the laser cut/engraved material stays hot, then it could warp or shrink.
This air pump is a diaphram style which does not require oil.
Oil or water in the air line could be projected directly onto the focal lens.
This air pump has a higher air flow rate and is quieter than other piston-stroke designs.
Blower / Fan / Vacuum The vacuum blower creates an air flow to remove dust and fumes from the work area of the laser machine.
It is important to remove the dust and fumes from the laser engraving areas because dust can settle onto the mirrors or lens.
Dust on the mirrors or lens will create a focal point of the laser's heat and soon destroy the optics.
The fumes need to be removed from the operator work area because they can be irritating and unhealthy.
The blower can also be connected to a vaccum box to pull air through the work material.
Vent Air Direction Control The exhaust air exits the laser machine through a 6 inch duct flange (150mm diameter).
The duct flows directly from the bottom of the vacuum table.
This allows for much better control of the air flow... getting rid of the unwanted fumes.

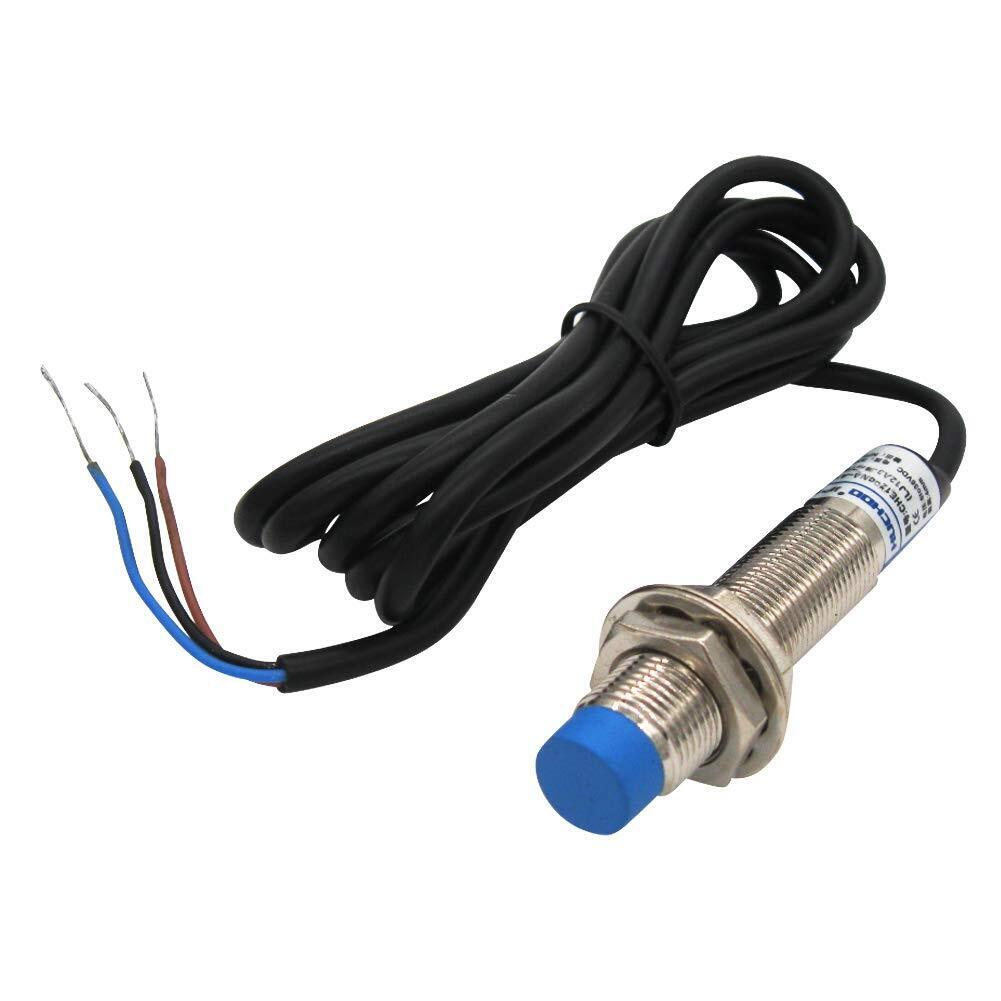

Limit Switches The limit switches prevent the axis from attempting to go beyond the mechanical limits of the machine. Some machines can be equipped with autofocus sensor which ties into the control board. The sensors for the X and Y axis are non-contact sensors which yeild a more repeatable position over the life of the machine.
The Inside Light: LED and Flourescent
It is always nice to check on the progress of the project that is currently running.
The laser machine has a viewing window through the main access door
...and this interior light works great for providing enough light to see what is happening inside.
It has been our standard practice to use flourescent light bulbs inside the work area.
We are in process of switching all our products to use LED fixtures.
Pass-Thru Doors The laser machine frame is built with doors that allow materials to extend out the front and/or rear of the machine.
The pass-thru is helpful when engraving or cutting material that cannot fit completely inside the machine.
Examples: Engraving pictures onto a bathroom shower door.
Rolls of fabric threaded into the rear door, engraved or cut, and then pulled out the front door.
Engraving the front door to my house.
Engraving very large mirrors or sheets of glass. The limits are endless.
Full Cabinet This laser machine is should NOT be considered as portable for a weekend project.
The main frame is a sheet metal cabinet that does not come apart easily.
This enables the machine to be much more rigid and utilizes more verticle space for the
Z movement, motors, small parts box, and the integrated vacuum table.
Castor Wheels The various models of laser machines can weigh from 300 to more than 1000 pounds.
Every machine is equipped with castor wheels to make it easier to move it around the workshop or office.
While the castor wheels are great for moving the laser machine around the building, the laser machine is also equipped with leveling pads.
The leveling pads should be used for long term stabilization of the laser machine.
Many companies purchase a laser machine that is slightly bigger than what the current needs are demanding. This laser machine is just the right size for a small home workshop or small business. I would not recommend for a weekend trade show or flee market. Don't think of this machine as possibly too small. It has plenty of space for projects extending near 24 x 16 inches. Do you have small doorways? NOT on the bottom floor of the building? Irregular doors or narrow office hallways? Don't worry about that. It is a small frame that can go through your typical 36 inch doorway.
Recommended options for the QX-40-6040 laser system:
